Create Your First Pipeline

This guide creates a simple pipeline that reads data, processes it with Python, and saves the result.

The finished pipeline will look like this:

Flight SQL
    │
    ▼
Python
    │
    ▼
Output

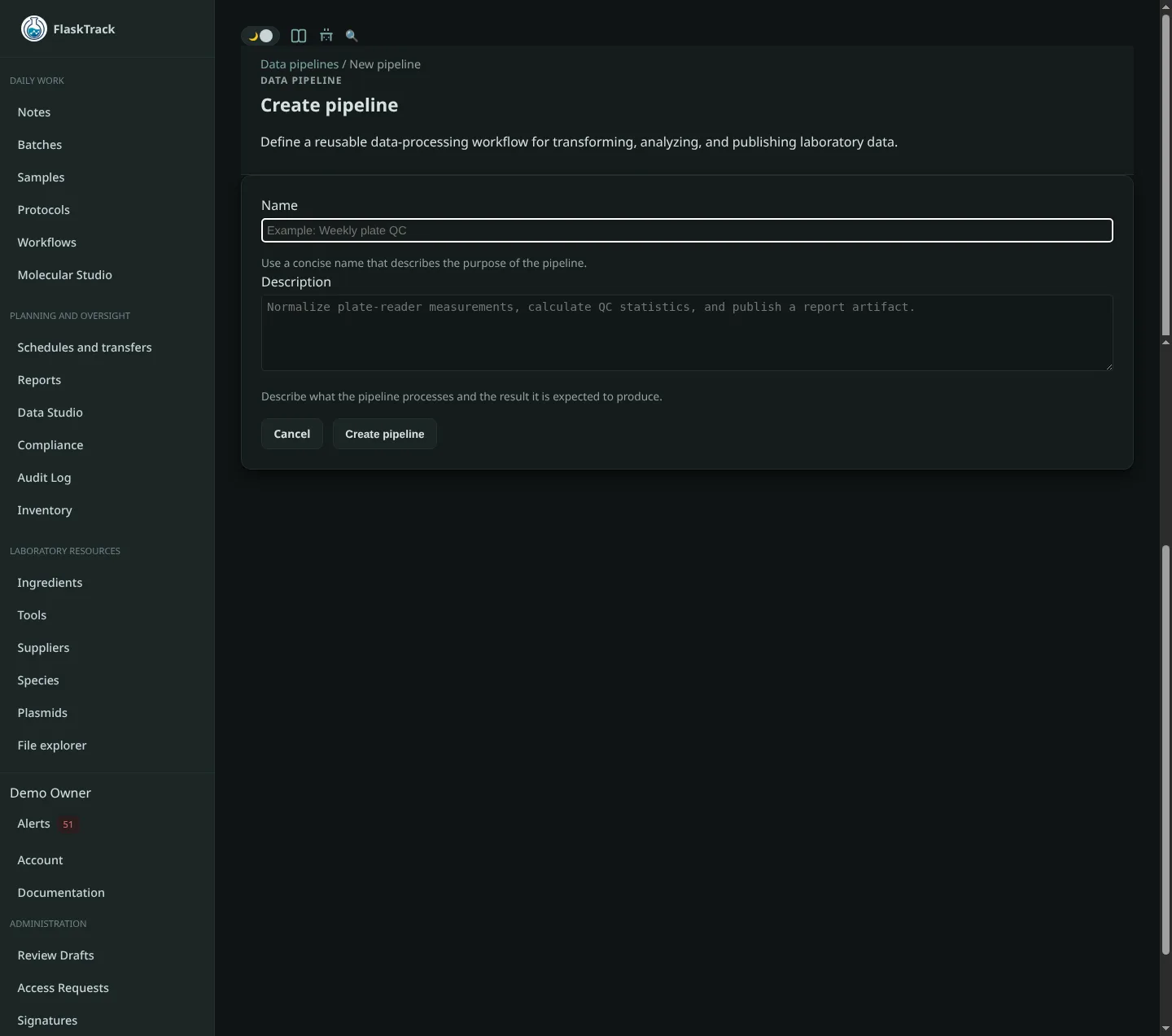

1. Open Data Pipelines

Open:

Data Studio → Data Pipelines

Select New Pipeline.

Enter a name and optional description.

Example:

Name:
Measurement normalization

Description:
Normalize completed measurement results for downstream analysis.

Select Create pipeline.

FlaskTrack creates the pipeline and its first draft.

2. Add a Data Source

Select Add source.

Choose the source type that matches the data you want to work with.

For this example, choose Flight SQL.

Enter a read-only query such as:

SELECT
    sample_id,
    value
FROM measurement_results
WHERE value IS NOT NULL

Save the block.

The source block provides an output named:

data

3. Add a Python block

Select Add Python.

Give the block a descriptive name, for example:

Normalize measurements

The default Python block uses an input named input and an output named output.

Enter:

import flasktrack as ft

table = ft.input_table("input").to_pandas()

mean_value = table["value"].mean()
table["normalized_value"] = table["value"] / mean_value

ft.output_table("output", table)

Save the block.

4. Add an Output block

Select Add output.

Example settings:

Name:
Save normalized measurements

Input:
input

Type:
Arrow table

Destination path:
analysis/normalized-measurements

Filename:
normalized.arrow

Save the block.

5. Connect the blocks

Connect the Data Source output to the Python input:

Data Source:data
        │
        ▼
Python:input

Then connect the Python output to the Output block:

Python:output
        │
        ▼
Output:input

Your graph should now be:

Data Source
    │
    ▼
Python
    │
    ▼
Output

6. Publish the pipeline

Select Validate & Publish.

FlaskTrack checks the graph before publishing.

If something is incomplete, FlaskTrack keeps the pipeline as a draft so you can correct it.

Once published, the version is ready to run.

7. Run the pipeline

Select Run Pipeline.

FlaskTrack creates a new run.

Open the run to see:

current status;
each block;
generated artifacts;
Python or R logs;
errors, if any;
final saved FlaskTrack files.

8. Edit the pipeline later

Published versions cannot be edited directly.

To make a change:

open the pipeline;
create a new draft;
edit the new draft;
publish the new version.

Earlier runs remain connected to the version that produced them.

Next steps

Learn how each source works:

Data Sources

Learn how to write processing blocks:

Python and R Blocks
