Data Pipelines

Data Pipelines let you turn FlaskTrack data into repeatable analysis and transformation workflows.

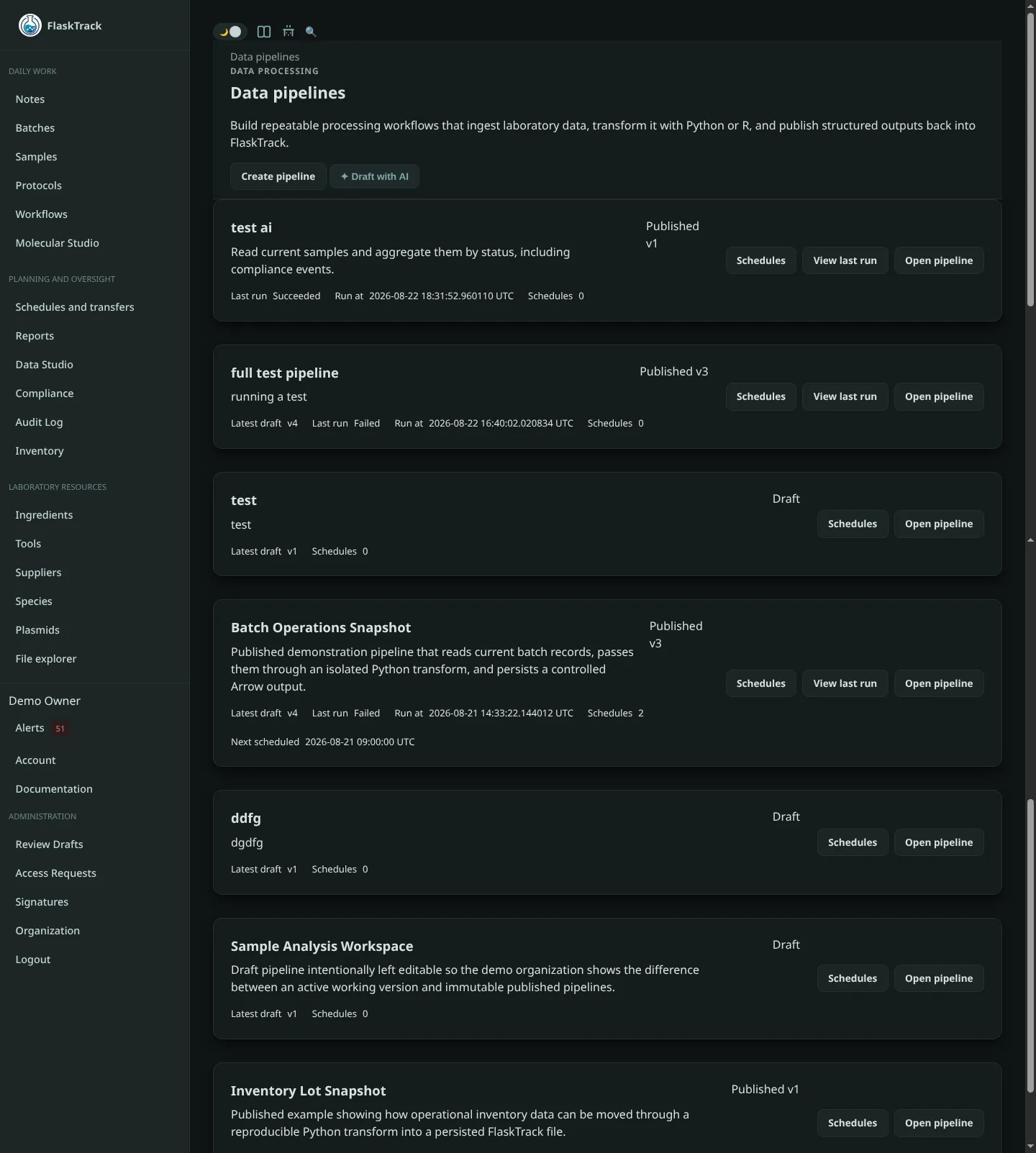

Data Pipelines overview in FlaskTrack
Data Pipelines combines reusable processing graphs, runs, schedules, and output handling.

Use a pipeline when you want to take data from FlaskTrack, process it with Python or R, and save the result back into FlaskTrack without repeating the same steps manually each time.

A pipeline is built visually from connected blocks:

Data source
    │
    ▼
Python or R
    │
    ▼
Output

You can also build longer workflows:

Saved report
    │
    ▼
Python cleanup
    │
    ▼
R analysis
    │
    ▼
Output file

What Data Pipelines are for

Data Pipelines are useful for tasks such as:

  • cleaning instrument or laboratory result data;
  • normalizing measurement tables;
  • calculating derived values;
  • preparing data for downstream analysis;
  • generating QC summaries;
  • converting Data Studio queries into repeatable workflows;
  • processing FlaskTrack files;
  • running Python or R analysis;
  • saving processed results back into FlaskTrack.

Data Explorer or Data Pipeline?

FlaskTrack Data Studio includes both interactive reporting and repeatable pipelines.

Use Data Explorer when you want to:

  • explore data;
  • write or generate SQL;
  • inspect a result;
  • save a report;
  • export data manually.

Use Data Pipelines when you want to:

  • reuse the same analysis later;
  • combine several processing steps;
  • use Python or R;
  • keep a versioned definition of the workflow;
  • run the workflow again against new data;
  • preserve the results and execution history.

The four block types

A pipeline is made from four kinds of blocks.

Block What it does
Data Source Brings data into the pipeline.
Python Processes data using Python.
R Processes data using R.
Output Saves a result back into FlaskTrack.

Blocks are connected by named inputs and outputs.

For example:

Data Source: data
        │
        ▼
Python: input
Python: output
        │
        ▼
Output: input

Drafts and published versions

When you create a pipeline, FlaskTrack creates a Draft.

You can freely edit a draft:

  • add blocks;
  • remove blocks;
  • move blocks;
  • edit scripts;
  • connect or disconnect blocks;
  • change data sources;
  • change output settings.

When the pipeline is ready, publish it.

A published version is locked so the exact workflow used for a run does not change later.

If you want to modify a published pipeline, create a new draft version.

Version 1 — Published
        │
        └── New draft
               │
               ▼
Version 2 — Draft

Runs

A run is one execution of one published pipeline version.

Each run keeps its own:

  • status;
  • requested time;
  • requesting user;
  • block results;
  • logs;
  • generated artifacts;
  • final output files.

Running the same published version twice creates two separate run records.

Where to start

If you are new to Data Pipelines, follow these pages in order:

  1. Create Your First Pipeline
  2. Data Sources
  3. Python and R Blocks
  4. Outputs
  5. Publishing and Running

For detailed behavior, see:
